330 IK SA US

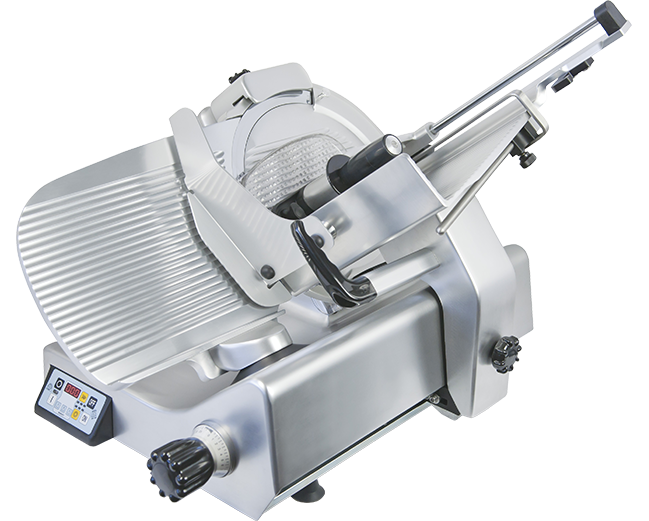

Kolossal automatic gravity feed slicer Mod. 330 (US VERSION), suitable for any deli, cheese, and cooked food

330 IK SA US
Product certifications:
Settori

Automatic slicer, technologically at top, with all the good characteristics of the manual model, of which it keeps the great sliding and the big cutting capacity.

The machine is also available with the self-locking clamping device and a transparent and removable remnant holder and sliding plate (AB option) or an aluminium and removable remnant holder (EF option). The automatic function is simple, intuitive and easy to be used. Contact us for more information!

THIS MODEL IS NOT CONFORM FOR THE EUROPEAN MARKET.

Kolossal 330 IKUS detail1

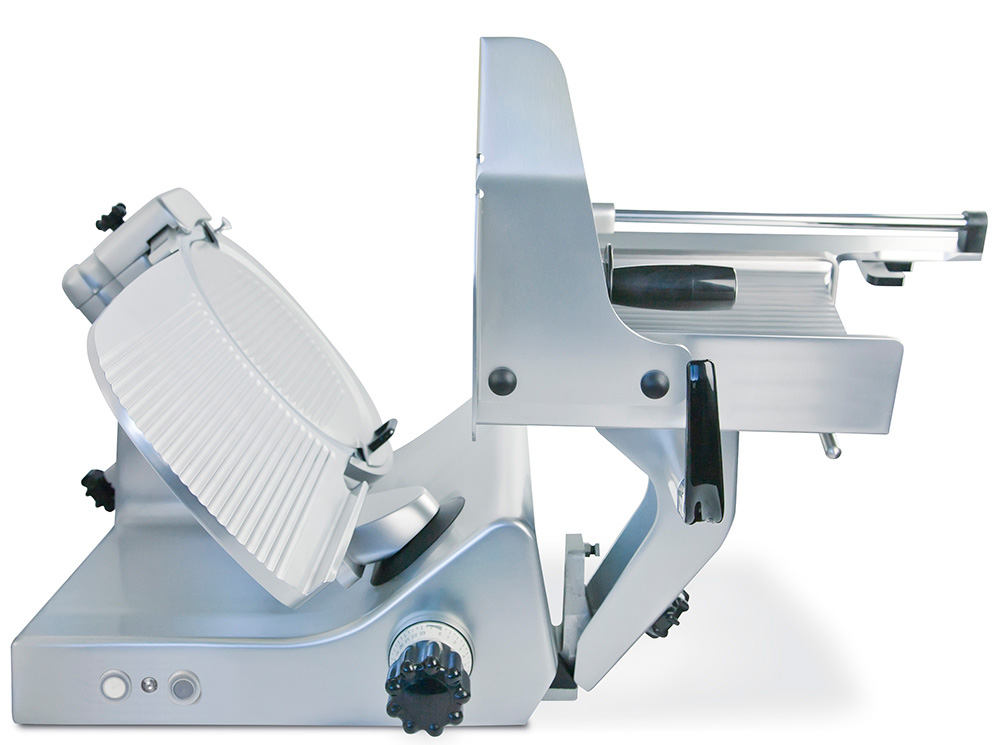

Kolossal-330-IK-SA-US Aperta

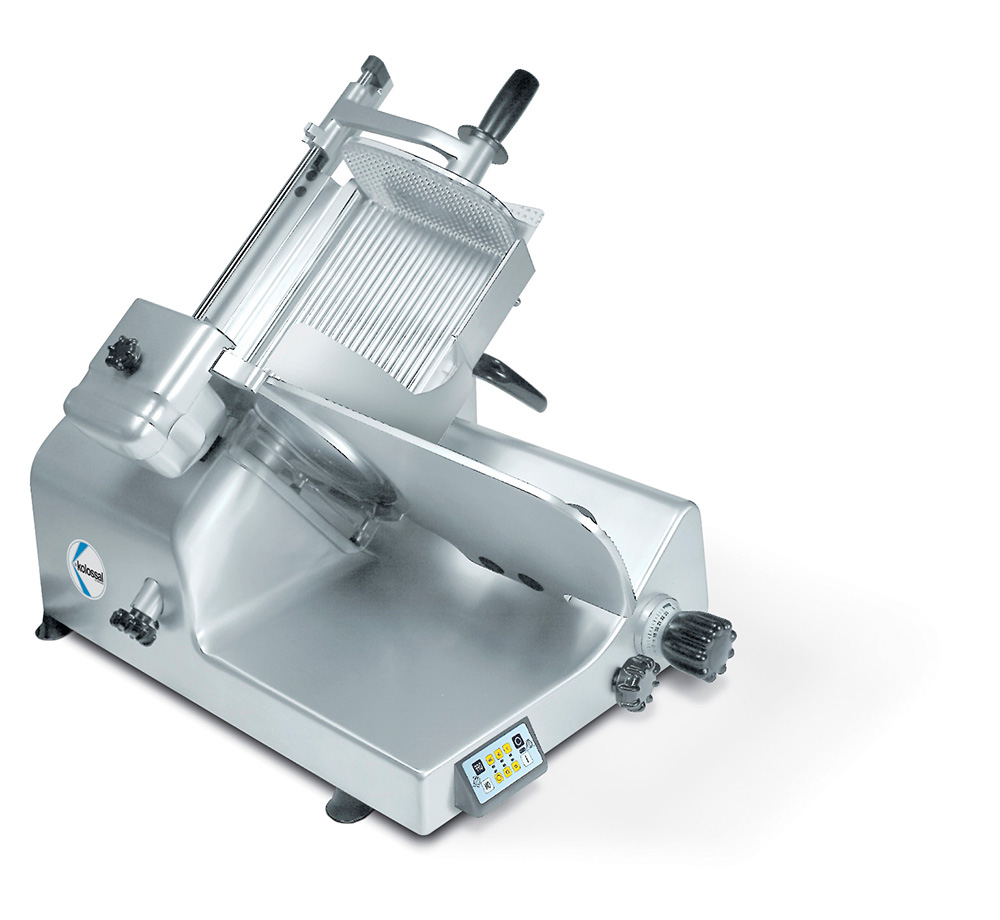

Kolossal-330-IK-SA-US Retro
KOLOSSAL 330 DETTAGLIO PIATTO EF
KOLOSSAL 330 DETTAGLIO PIATTO AB
Kolossal330 IK SA US Dettaglio 2
Intertek
Kolossal 330 IKUS detail1
Kolossal-330-IK-SA-US Aperta
Kolossal-330-IK-SA-US Retro
KOLOSSAL 330 DETTAGLIO PIATTO EF
KOLOSSAL 330 DETTAGLIO PIATTO AB
Kolossal330 IK SA US Dettaglio 2
Intertek

Standard equipment

  • Gear box transmission
  • Automatic or manual operation with outstanding smoothness
  • Automatic slicing process improved by 3 different stroke lengths and 3 different speed modes
  • Built-in sharpener, right way available and easy to be used
  • Great capacity and precision slicing
  • Low loading height; reduced lifting and strain of the operator
  • Carriage with spiked and swinging remnant holder
  • Ultra smooth, polished aluminum surfaces and carefully machined slip grooves; reduced friction and simplified cleaning
  • Compact design; reduced counter space
  • Tilting away carriage; sharpener, blade guard, product deflector and sharpened remnant holder removable for a well done cleaning
  • Integral motor overload protection
  • Adjustable food fence
  • In compliance with European Norms: 2006/42/EC (machinery standards); 2006/95/EC (low voltage directive); 2004/108/EC (electromagnetic compatibility directive); 2011/65/UE (RoHS directive); 1935/2004/EC (food material directive) and their next updates. Follow also next harmonised standards: EN 1974:1988 + A1:2009 (slicing machines-safety and hygiene requirements); EN 60204-1 (safety of machinery); EN 55014 (electromagnetic compatibility); D.M. 21/03/73 (hygienic food tools requirements); 10/2011/UE (food grade plastic directive); and their next updates
  • NSF, UL and CSA listed
Kolossal Optionals
AL
Blade extractor
Blade extractor
AM
Lifting device
Lifting device
LP
Profiled blade
Profiled blade
RA
Aluminium thumb guard
Aluminium thumb guard
DFM
Adjustable food fence
Adjustable food fence
AB
Carriage with self
Carriage with self
E
Removable transparent meat press
Removable transparent meat press
EF
Removable aluminium meat press
Removable aluminium meat press
Technical features - 330 IK SA US
Working area759 x 622 x 932 mm
Blade diameter13'' dia
Blade speed255 rpm
Slice thicknessfrom 0'' to 0,94''
Electrical protectionIPX3 (Motor IPX5)
Net weight124 Lb.
Carriage stroke in manual mode13,58''
Cutting capacity long stroke Ø 9,45'' - 11,4'' x 8,3''
Cutting capacity medium stroke Ø 7,9'' - 7,9'' x 7,9''
Cutting capacity short stroke Ø 4,3'' - 4,3'' x 4,3''
Electrical specifications220-230V / 560W a.c. monophase
Strokes/min Long StrokeHigh velocity 30/40/50
Strokes/min Long StrokeLow velocity 25/35/45
Strokes/min Medium StrokeHigh velocity 30/40/50
Strokes/min Medium StrokeLow velocity 25/35/45
Strokes/min Short StrokeHigh velocity 40/50/60
Strokes/min Short StrokeLow velocity 35/45/55

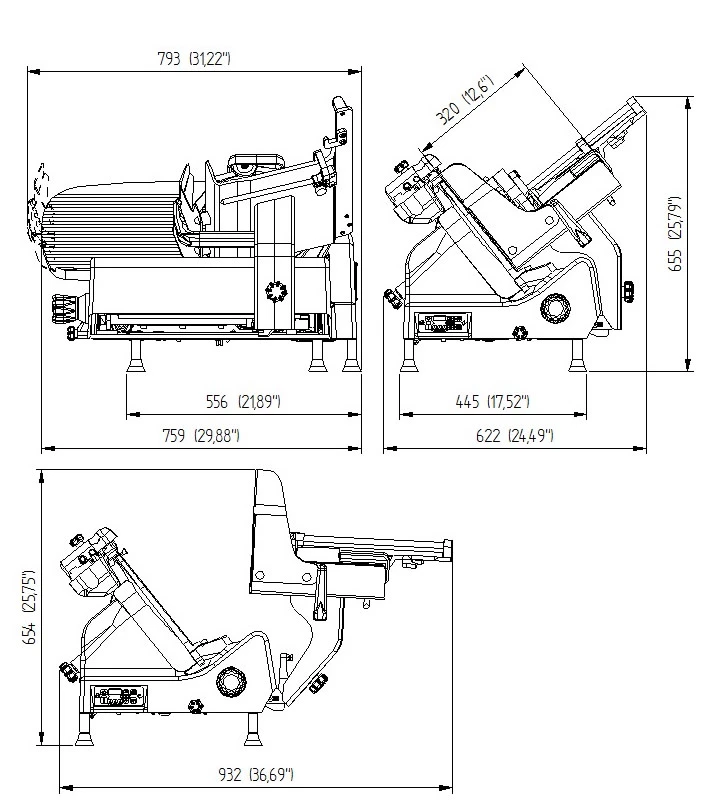

Schema Tecnico Kolossal 330 IK SA US
Click to zoom Download the product specification
